The concept

Good Separate. Ideal in the set.

Good Separate

The device of the X20X family are classified into two types: EM modules - which include a CPU, Ethernet controller, memory and other digital circuits; modular RJ connectors that have Ethernet connections, magnetics RJ45 jack and shielded that part "covers" module.

EM modules can be used with any standard Ethernet connector (eg, connector YCL-PTC1111-01G RJ45 with integrated magnetics).

Depending on the model and configuration, these devices can operate either as interfaces converters or as BASIC-programmable controllers.

Each module of the X20X family has several status LEDs.

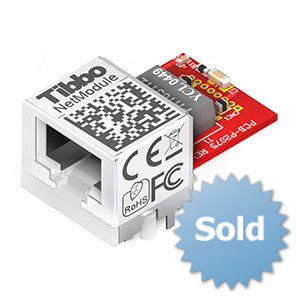

RJ modules combine a standard 10 / 100BaseT interface and an RJ45 connector.

Unique patented design RJ module minimizes the required PCB size and enables you to build other components (such as Ethernet controller) directly underneath.

Lightweight body partially covering the module, it provides a better mechanical strength and good air circulation (due to the open part of the device).

The front panel of the case is translucent, which allows the user to monitor the LED status indication ethernet

Ideal in the set

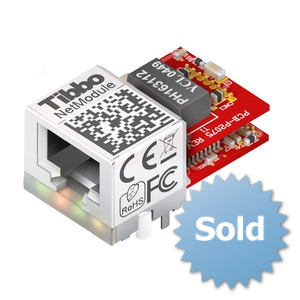

EM and RJ modules perfectly combined with each other. EM device is integrated directly under the RJ module, which ensures efficient use of the allocated area of the printed circuit board.

In this configuration, the LEDs EM module appear directly behind the translucent panel RJ device. Thus, the user can simultaneously monitor the condition of both RJ, and EM module

Features

Much Improved, still Compatible

To create a better product, we did not just think outside the box. We completely abandoned the legacy design! The new X20X family module has a patented design, significantly improved, compared to the now-outdated EM202 module.

Ruler of devices

The table below shows the EM modules in the left column and the RJ module connectors in the right column.

Compatible devices are located in the same row. For example, the EM203A module is compatible with the RJ203A module
