GP90 - Long range proximity reader

GP90  is a long range ProxID proximity card reader. The reader is ideal for use in any systems that require remote reading of cards, especially in controlling access to the premises. The undoubted advantage of this device is a large selection of possible interfaces, which allows it to be built into any already existing systems. This model demonstrates record reading ranges of passive proximity cards. The reader is equipped with a relay to control the actuator.

GP90 is made in a sealed enclosure that allows you to use it outdoors (very convenient to control the barrier in automated parking).

Specifications:


• Long reading range: up to 90 cm using passive ISO RFID cards, more than 100 cm for special 'thick' - (2mm) cards
• High-precision auto-tuning scheme for compensating for changes in environmental conditions and protection from the effects of metal objects.
• Bright LED indicators, LED signal level scale
• Frequency: 125 kHz
• Format: 64 bits, Manchester encoding
• Type of readable chip cards: EM H4001 / H4002 (EM Marin)
• Code Length: 10 hexadecimal characters
• Ability to select one of four interfaces (All interfaces are supported by one device):
• Magstripe (TTL emulation of the 2nd track magnetic card reader): MSR ABA Track2
• Wiegand, 26 bits
• RS232: Serial ASCII, 9600, N, 8, 1 (also for controlling relay contacts)
• RS485
• Interface cable length 90 cm (no connector)
• Built-in relay (controlled by serial port)
• Ability to upgrade internal software (upgrade).
• Sealed shockproof housing
• Dimensions: 430 * 320 * 45 mm
• Case material: ABS plastic, color: black
• Operating temperature: -10 to +60 ° C
• Humidity: 10-90%
• Built-in high quality power adapter, which is also a voltage stabilizing filter and eliminates interference
• Input: 230V / 50Hz
• Output: 18 ~ 19.2V / 1.5A (Max)

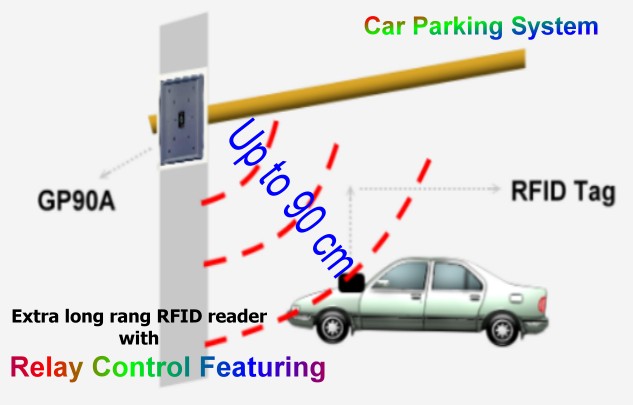

Application example:
