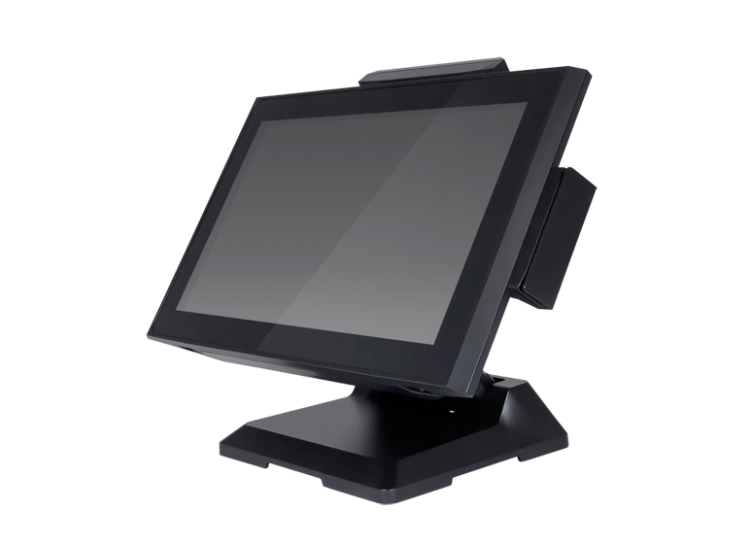

Terminal POS Flytech PB15

Motherboard

D36

C56L

Processor

Intel Celeron J1900 2.41 GHz, L2 2MB (10W)

Intel Cedar View D2550 CPU, 1.86 GHz, L2 1MB, TDP 10W

Chipset

N/A; including in CPU

Intel NM10

System Memory

1x DDR3L-1066/1333Hz, SO-DIMM, default 2GB

1x DDR3 S.O.DIMM up to 2GB, FSB 1066MHz

Graphic Memory

Intel HD Graphic DX11 and OCL1.1

Intel GMA 3650 (Gfx frequency up to 640MHz), DX9

LCD Touch Panel

LCD Size

14” LED Panel

Brightness

200 nits

Resolution

1366 x 768

Touch Screen

True-Flat Resistive Touch

Tilt Adjustment

10°~90°

Storage Device

Hard Drive

1x 2.5” SATA HDD

Flash Memory

1x SATA SSD card (option)

Expansion

Mini PCI-E Socket

1

External I/O Ports

USB

6 (5 x USB 2.0 (1 by cable type option), 1 x USB3.0)

5 (1 in front of display head, 4 in I/O port)

Serial Port

3x RJ45 COM (COM1 / COM2 W/5V, COM3 W/12V powered enabled by BIOS)

4x RJ 45 COM (COM1 standard RS232; COM2/3/4 powered RS232; COM2 default 0V; COM3 default 5V; COM4 default 12V by Jumper Setting)

GigaLAN (10/100/1000)

1 (RJ45)

VGA

1 (12V power enable by BIOS)

1 (12V power by Jumper Setting)

Cash Drawer

1 (RJ11, 12V/24V, default 24V by Jumper setting)

DC Jack1

1

Audio Line-out

1

PS/2

1

Power

Power Supply

External adapter, 65W/ 19V

Control / Indicator

Power Button

1

Power Switch

1

Power LED

1

Peripheral (Option)

MSR

1 (USB)

i-Button

1 (USB)

Fingerprint

1 (USB)

2nd Display

14” without touch

Customer Display

LCM (USB)

Certificate

EMC & Safety

FCC, CE Class A, LVD

Environment

Operating Temperature

0°C ~ 35°C ( 32°F ~ 95°F )

Storage Temperature

-20°C ~60°C (-4°F ~ 140°F)

Humidity

20% - 85% RH non condensing

Communication

Wireless LAN

802.11 b/g/n Wireless LAN card & antenna (option)

Dimension (W x D x H)

LCD 60° tilt angle: 380 x 195 x 278 mm (15" x 7.6" x 10.9")

Weight

3.7 kg (8.13 lbs)

Mounting

75 x 75 mm VESA mounting hole for panel PC type

OS Supported

Windows® XP Professional, Windows Embedded, POSReady 2009, Windows XP Embedded, Windows XP Professional for Embedded, WinCE, Windows 7, Linux, Windows 8 (only for D36)
